Getting Started with Deployment

This guide will help you get started with deploying Rooms in your environment. Follow the steps below to ensure a smooth deployment process.

System Requirements

To run Rooms effectively, your system should meet the following minimum specifications:

Requirement Minimum Specification
CPU 2 cores
RAM 8 GB
Storage 40 GB
Operating System Alpine Linux 3.20+ (or compatible)
Architecture x86_64

Prerequisites

Before you begin the deployment, ensure that you have the following prerequisites in place:

Required Software:

Required Access:

  • Firewall port configuration rights
  • A domain name for your deployment

What You’ll Deploy

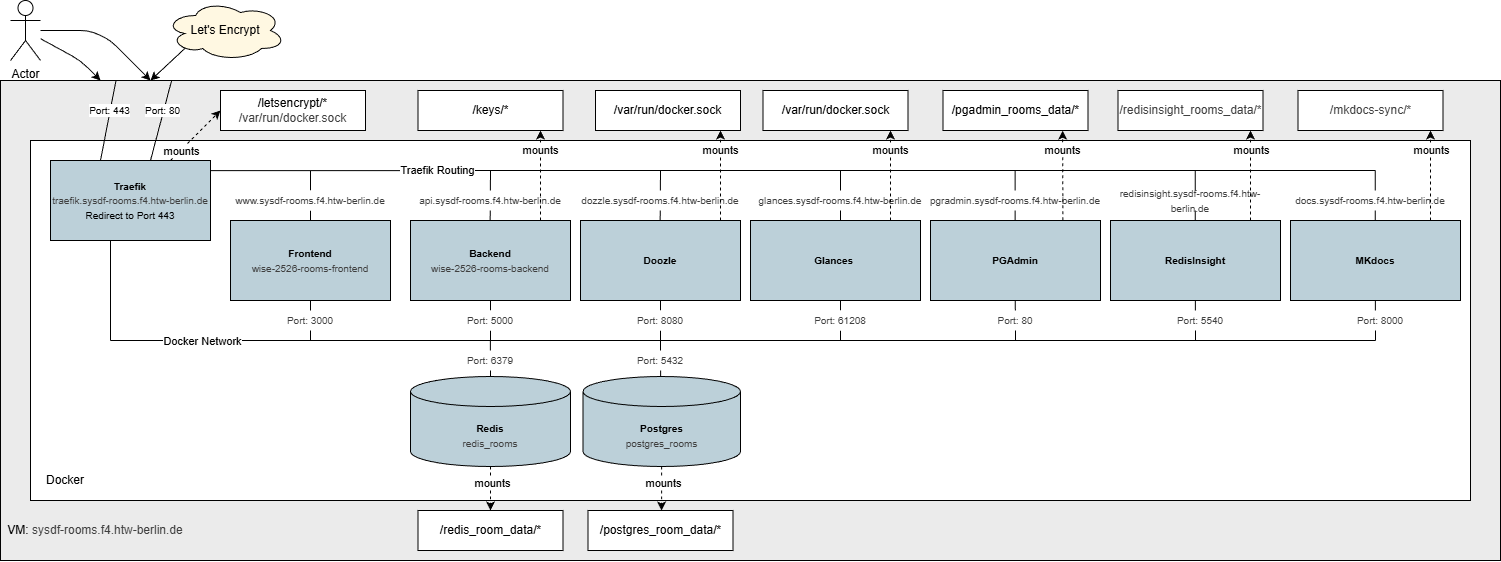

Deployment Overview Figure 1: Complete deployment architecture showing all components and their relationships

Architecture Overview

The deployment consists of the following key components:

  • Rooms Backend: The core application server handling business logic and API requests.
  • Rooms Frontend: The user interface for interacting with the Rooms application.
  • PostgreSQL Database: The primary database for storing application data.
  • Redis Cache: An in-memory data structure store.
  • Traefik Reverse Proxy: Manages incoming traffic and routes requests to the appropriate services.
  • Monitoring Tools: Includes Glances, Dozzle, PgAdmin, and RedisInsight for system and application monitoring.
  • Documentation Server: Hosts the mkdocs-based documentation for easy access.

For a detailed breakdown of each component, see the Architecture Documentation.

Deployment Steps

  1. Firewall Configuration: Ensure that the necessary ports are open as described in the Firewall Configuration guide.
  2. DNS Setup: Configure DNS settings for your domain as outlined in the DNS Setup guide.
  3. Prepare Installation Environment: Set up the installation environment by following the steps in the Prepare Install Environment guide.
  4. Deploy Application: Deploy the application using Docker Compose as detailed in the Deploy: Docker Compose guide.
